26 Inch Mtx Rear Wheel Electric Bike Kit 48v 1000w Cycling Motor , Bicycle Electric Conversion Kit
Description
Teatures of 48v1000w Ebike kit with built-in controller:
1. All waterproof connectors, use longer life
2.Controller is built in the motor, which is more convenient , beauty and smaller space.

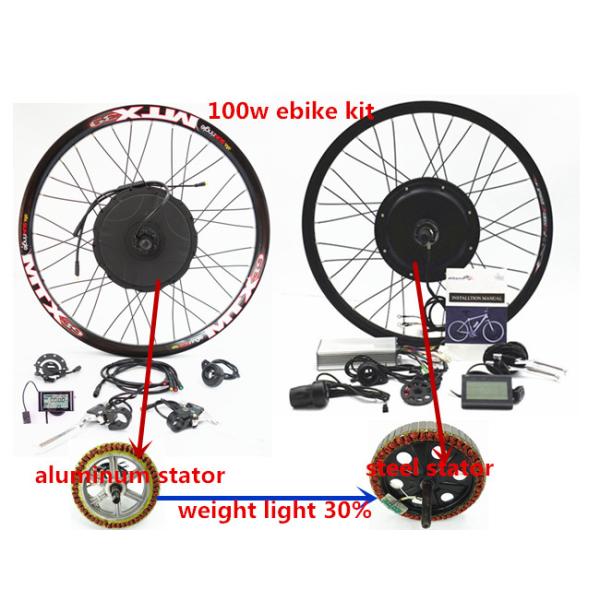

3.Aluminum alloy stator motor , light weight
4. MTX33/39 Sun ringle (USA brand )double-wall rim with spokes,
MTX 39 :24''and 26inch
MTX 33: 29inch / 700c
48v1000w electric bike kit including :
Package Includes:
· 1* Powerful 100W 48V brushless hub motor
· 1* 26" rear wheel (the whole wheel without tire!)
· 1*Electric controller
· 2*electric brake lever
· 1* thumb throttles or twist throttle
· 1* PAS
· 1* Manual
Kindly Notice:
· optional 1:LCD or LED display
· optional 2:torque arm , water proof cable , 12 magnet pas , Shimano hydraulic disc brakes, freewheel
· Battery not included, if you need , we can provide 13ah , 14 ah , 17ah and 20ah lithium battery
specification :
| Product name | 48v 1000w motor |
| Certificate | CE for EN15194 |
| Motor power | 1000w |
| Axle | 10mm* 14mm |
| Type | Front or rear motor to choose |
| Voltage | 48v |
| Magnet Height | 30mm |
| Design | Brushless gearless dc |
| Windings | 11*5 |
| Waterproof grade | IP54 |
| RPM | 520 |
| Cable size | 2mm2 |
| Max torque | 40N.M |
| Max Efficiency | >=88% |

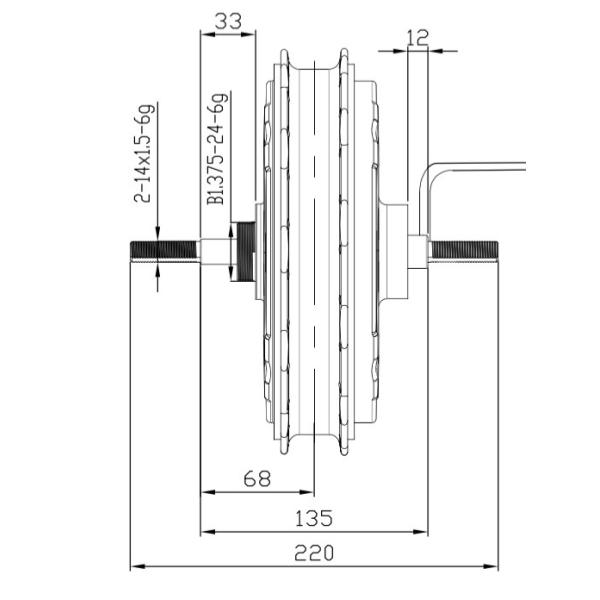

| Open size | 100mm for front motor, 135mm for rear motor |
| Wheel size | 16-28inch |
| Hall sensor | Yes |
| Hall sensor angle | 120 degrees |
| Integrate speed sensor | Optional |
| Brake | Disc brake |
| Surface color | Dark black/ sliver white |
| Temperature sensor | Yes |
| N.W | 6.2kgs |
| Warranty | 2 years |
Water proof ebike kit , the controller built in the motor . NC154 style ebike kit
